Tsunami Bicycle terkenal dengan produk framenya yang cassic, terbuat dari steel / chromoly, dan harga yang terjangkau. Dari postignan instagramnya di @tsunamibikes kebanyakan sepeda yang di posting adalah fixed gear, namun jangan salah Tsunami Bikes hadir dengan seri frame Tsunami Seaboardnya, tersedia gravel bike juga, berikut opsinya.
Tsunami Seaboard CX 1
Untuk saat ini frame Tsunami Seaboard CX01 menjadi pakling classic dari kategori gravel bike untuk line produk Tsunami. Desain tube yang kecil baik di toptube dan downtube, dan hero colornya adalah finishing Ti polish yang mengkilap.
Frame ini cocok untuk kamu yang ingin tampilan classic yang benar-benar full. Tidakakan cocok untuk beberapa caliper rem hydrolic dari grx atau lainnya yang menggunakan flat mount, karena frame ini hanya support post mount, namun bisa di akali dengan memasang kaliper. Berat frame total plus fork 2.150g + 850g dan support sampai 40mm tire. Hadir dengan harga USD 439 alias Rp 6,863,852.
Spesifikasi Tsunami Seaboard CX01:
Frame:
- Material: heat-treated, triple-butted SEABOARD chromoly steel tubing – tig welded
- ultra-light forged and machined straight headtube
- Headset included.
- 135mm axle spacing.
- Welded stainless-steel derailleur hanger
- 27.2mm seat tube with alloy seat collar
- Front derailleur clamp size: 28.6mm (max torque setting: 2.5nm)
- Bottom bracket: 68mm – english threaded
- Accommodate 1x or 2x chainrings
- Crankset min/max ring size – single: 36 to 50t / double: 46/31t to 53/39t
- External brake cable routing
- Bottle mounts: 2
Fork:
- Chromely steel lugged disc road fork included.
- 1-1/8´´ straight steerer with integrated 45-degree crown race
- 100mm axle spacing
- Steerer length: 300mm
- Axle-crown: 371mm
- Rake/offset: 46mm
Tire compatibility:
- Wheel and tire compatibility: 700 x 40c tire clearance (depending on tire/rim manufacturer)
- Frame max spacing: 43mm
- Fork max spacing: 43mm
Brake compatibility:
- Post-mount brakes front and rear: 160/180mm ( Adaptors need separately)
Details:
- Frame weight: 2,150g (size 50 – w/o thru-axle)
- Fork weight: 850g (uncut steerer – w/o thru-axle)
Link Produk https://tsunamibicycle.com/product/2019-ck01-touring-frameset/

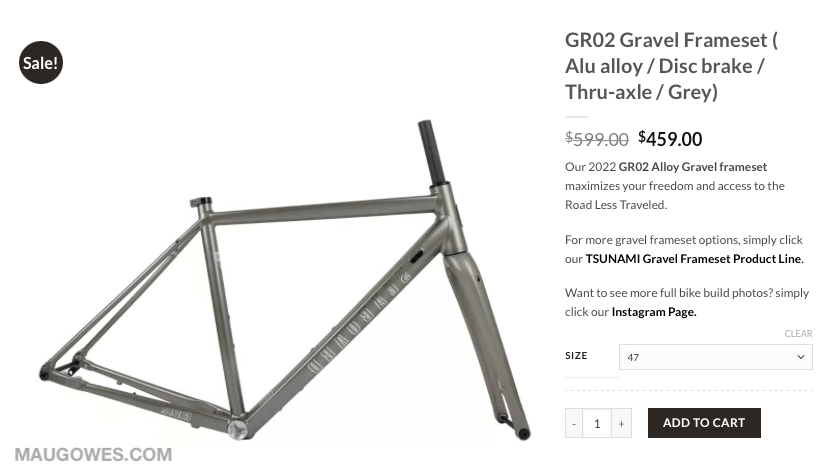

Tsunami Seaboard GR02
Seri GR02 ini bisa dibilang seri paling populer di pasaran, dan mudah di temukan di marketplace Indonesia, meski kebanyakan hanya tersedia satu warna gold. Salah satu alasan populer karena bahannya alloy yang tetap kuat tapi lebih ringan dari chromoly, serta desainnya yang lebih unik, karena sebagia besar frame moderen saat ini menggunakan desain dropped seat stay. Disamping itu forknya juga sudah full carbon, selain ringan juga lebih enak meredam getaran.
Hadir dengan material alloy dan frame full carbon, berat total sepeda ini adalah 2.1kg, yap masih berat tapi masih untuk sepeda gravel yang memang lebih banyak di tanah dan bukan untuk speed di jalan raya. dan sudah flat mount untuk kaliper disc brakenya, sehingga mudah untuk memasang groupset moderen di frame ini. Berikut spesifikasi lengkap dari Tsunami Seaboard GR02.
Spesifikasi Tsunami Seaboard GR02
Frame:
- Material: 6061 aluminum alloy (All cable inner routing ).
- Ultra-light forged and machined tappered headtub
- Headset included (integrated 41.8MM/52MM )
- 142mm spacing (12mm alloy thru-axle included
- Replaceable stainless-steel derailleur hanger
- 27.2mm seat tube with integrated seat collar
- Front derailleur clamp size: 28.6mm (max torque setting: 2.5nm)
Bottom bracket:
- 68mm – english threaded
- Accommodate 1x or 2x chainrings
- Crankset min/max ring size – single: 36 to 50t / double: 46/31t to 53/39t
- Internal brake cable routing
- bottle mounts: 3
Fork:
- GR02 carbon fiber disc gravel fork included
- 1-1/8´´ tapered steerer with integrated 45-degree crown race
- 100mm spacing (12mm alloy thru-axle included)
- steerer length: 300mm
- axle-crown: 371mm
- rake/offset: 46mm
Tire compatibility:
- wheel and tire compatibility: Up to 700 x 50c tire clearance (depending on tire/rim manufacturer)
Brake compatibility:
- flat-mount brakes Front : 160mm / 180mm max ( adaptors with caliper separately)
- flat-mount brakes Rear : 140mm without adaptor / 160mm /180mm max ( Need adaptor separately)
- frame flat-mount bracket height: 10mm
Details :
- frame weight: 1644g (size 50 – w/o thru-axle)
- fork weight: 507g (uncut steerer – w/o thru-axle)
Link sumber https://tsunamibicycle.com/product/gr02-gravel-frameset-alu-alloy-disc-brake-deep-grey/
Tsunami Seaboard CX05
Dengan konsep sama seperti kakaknya Tsunami Seaboard CX01, yakni dengan bahan dari chromoly. Untuk CX05 ini menggunakan bahan chromoly yang sama dengan desain classic tubing kecil, tapi dengan fork yang sudah full carbon. Dan terlihat juga masih menggunakan caliper postmount, sepertinya jika ingin pasang GRX disini, kamu perlu beli adapter postmount to flatmount.
Berat totalnya adalah 2300gram, bisa lebih ringan setelah steerer tube kamu potong. Berikut spesifikasi lengkapnya.
Spesifikasi Lengkap Tsunami Seaboard CX05
Frame:
- material: heat-treated, triple-butted SEABOARD steel tubing – tig welded
- ultra-light forged Φ44mm downtube and machined straight headtube
- Headset included (41.8MM/51MM )
- 142mm spacing (12mm alloy thru-axle included)
- Replaceable stainless-steel derailleur hanger
- 27.2mm seat tube with integrated seat collar
- front derailleur clamp size: 28.6mm (max torque setting: 2.5nm)
- bottom bracket: 68mm – english threaded
- Accommodate 1x or 2x chainrings
- Crankset min/max ring size – single: 36 to 50t / double: 46/31t to 53/39t
- Internal brake and shifter cable routing
- bottle mounts: 2
Fork:
- CX05 carbon disc gravel fork included
- 1-1/8´´ straight steerer with integrated 45-degree crown race
- 100mm spacing (12mm alloy thru-axle included)
- steerer length: 300mm
- axle-crown: 371mm
- rake/offset: 46mm
Tire compatibility:
- wheel and tire compatibility: 700 x 43c tire clearance (depending on tire/rim manufacturer)
Brake compatibility:
- Post-mount brakes front and rear: 140mm (160mm max – adaptors available separately)
Details:
- frame weight: 2020g (size 50 – w/o thru-axle)
- fork weight: 377g (uncut steerer – w/o thru-axle)
Link sumber https://tsunamibicycle.com/product/ck05-tig-frameset-steel-gravel-bike-disc-break/
Tsuname Seaboard CX07
Tsunami Seaboard CX-07 hadir dengan desain dan geometri mirip dengan Tsunami CX-05 hanya saja untuk mounting caliper brakenya sudah support flat mount, sehingga cocok sekali untuk yang kamu yang ingin menggunakan Shimano GRX full atau opsi caliper modern lain yang sudah flat mount.
Berikut Spesifikasi Lengkap dari Tsunami Seboard CX07
Frame:
- material: heat-treated, triple-butted SEABOARD steel tubing – tig welded
- ultra-light forged Φ50mm downtube and machined straight headtube
- Extenal Headset included (41.8MM/51MM )
- 142mm spacing (12mm alloy thru-axle included)
- Replaceable stainless-steel derailleur hanger
- 27.2mm seat tube with integrated seat collar
- front derailleur clamp size: 28.6mm (max torque setting: 2.5nm)
- bottom bracket: 68mm – english threaded
- Accommodate 1x or 2x chainrings
- Crankset min/max ring size – single: 36 to 50t / double: 46/31t to 53/39t
- Internal brake and shifter cable routing
- bottle mounts: 2
Fork:
- CX07 carbon disc gravel fork included
- 1-1/8´´ straight steerer with integrated 45-degree crown race
- 100mm spacing (12mm alloy thru-axle included)
- steerer length: 300mm
- axle-crown: 371mm
- rake/offset: 46mm
Tire compatibility:
- wheel and tire compatibility: 700 x 43c tire clearance (depending on tire/rim manufacturer)
Brake compatibility:
- flat-mount brakes front and rear: 140mm (160mm max – adaptors available separately)
- frame flat-mount bracket height: 10mm
Details:
- frame weight: 2020g (size 50 – w/o thru-axle)
- fork weight:477g (uncut steerer – w/o thru-axle)
